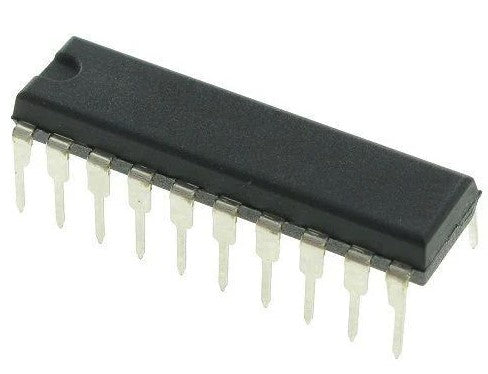

Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC
Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC
Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC

Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC

$12.59
$12.59
Please hurry! Only 0 left in stock
Limited-Time Offers, End in: 151D 8H 23M 0S
Subtotal: $12.59

Free Shipping

Free Shipping on $60 or More!

Standard Delivery time 5-8 Bussiness days.

Return & Exchange

you may return it for REFUND or EXCHANGE it for

another style within 30 days of receiving your order.
Order within the next hours minutes to receive it. Estimated delivery is between and
Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC

Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC

$12.59
Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC
Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC
Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC

Dual Universal Switched Capacitor Active Filter, 20 Pins, MF10CN Linear IC

$12.59
Description
Description
x
  • Filter Type: Universal Switched Capacitor
  • Frequency - Cutoff or Center: 30kHz
  • Number of Filters: 2
  • Filter Order: 4th
  • Voltage - Supply: 14V
  • Mounting Type: Through Hole

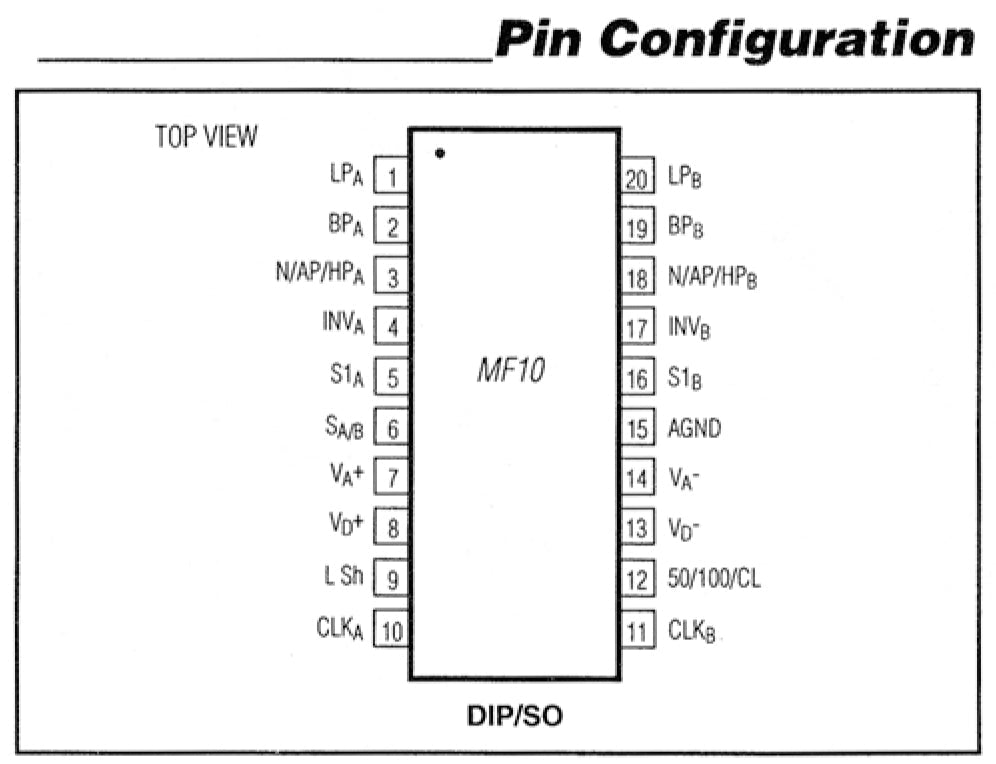

  • Package / Case: 20-DIP (0.300", 7.62mm)

The MF10 is a dual 2nd order, switched capacitor, state variable filter. Each of the two filter sections uses two switched capacitor integrators and an op amp to generate a second order function. The location of the poles (and thus the center frequency and Q) is determined by the frequency of an external clock and 2 to 4 external resistors. No external capacitors are used.

Each of the two filter sections of the MF10 can generate all standard 2nd order functions: bandpass, lowpass, highpass, notch (band-reject), complex zeroes and allpass functions. Three of these functions are simultaneously available. The frequency of the 2nd order poles is accurate to ±0.2% and the Q is accurate to within 2%.

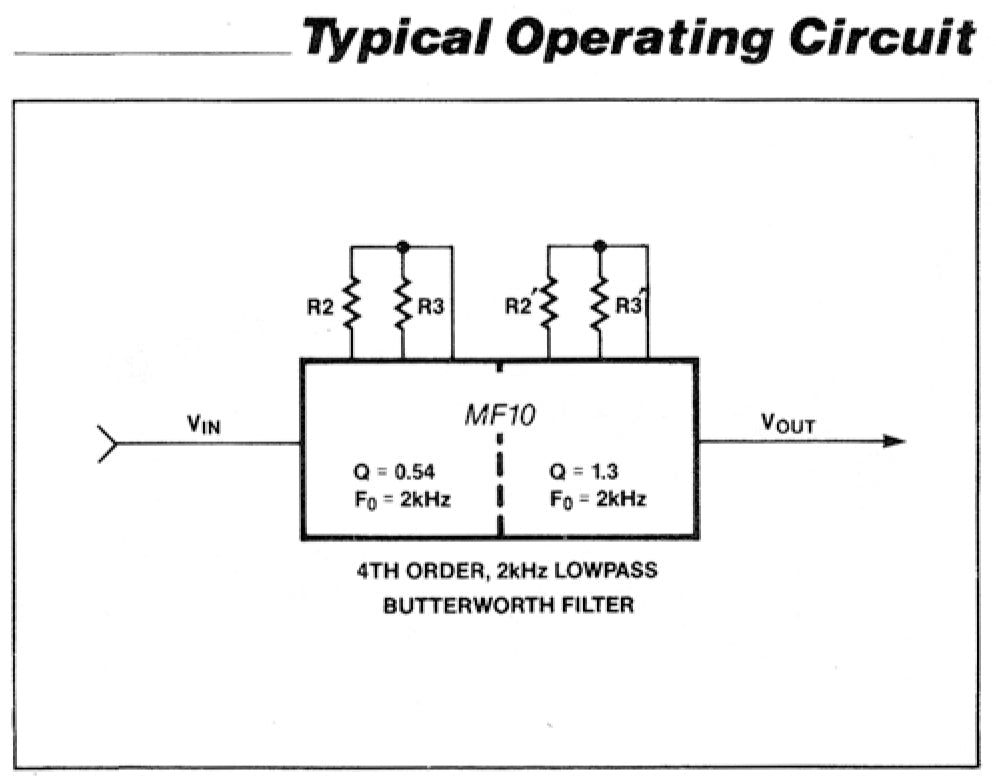

Fourth order filters can be made by cascading the two 2nd order filter sections of the MF10, and higher order filters can easily be made by cascading more MF10s. The excellent accuracy and stability of MF10 based filters eliminates the complex, costly tuning normally required in the production of high order (multipole) filters. Design equations for Butterworth, Bessel, Chebyshev, and Cauer (Elliptic) filters are provided.
